Tortilla Assembly

The Tortilla Booth is designed to be our easiest to set up booth yet. Within a few short minutes, you will have your booth assembled and ready to go.

---

Welcome To Tortilla

Before You Start

Before assembling the Tortilla Booth, make sure you:

• Update to the latest iOS version

• Have a 13’ (4m) diameter circular area to set up your Tortilla Booth (approximately 13’ x 13’/4m x 4m)

---

Part One

Unpack The Tortilla

1. Roll the Tortilla case to a position behind where your booth will be fully set up

2. Unzip the large side panel

3. Remove the Tortilla arm and set aside

   Note: the Tortilla arm must be removed before the base

4. Roll the Tortilla base out along the side panel

5. Lay the Tortilla base down on the ground, feet side first

---

Part Two

Balance The Tortilla

1. Step onto the Tortilla platform and place your feet in a wide stance. Each foot should be on the edge of the base, across from each other.

2. Shift your weight from side to side, forward and backward

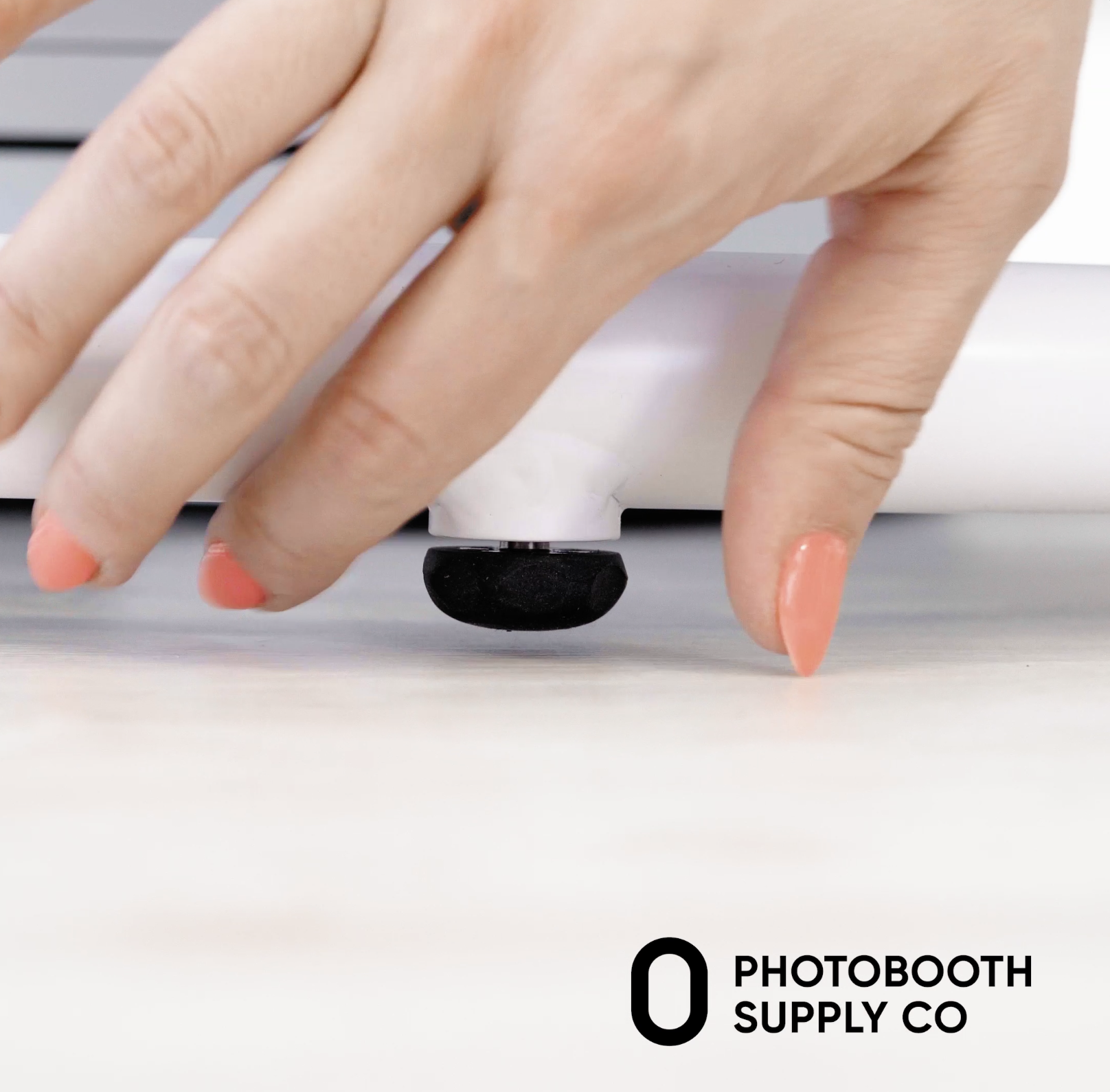

3. Adjust the feet as necessary to balance the Tortilla base

---

Part Three

Attach The Arm

1. Compress the pin lock on the Tortilla arm attachment point on the base

2. Slide the Tortilla arm onto the Tortilla arm attachment point

3. Adjust the arm angle by unscrewing and then pulling out the hinge knob

4. Extend the arm by unscrewing the arm knob and sliding the arm up and down

5. Secure both the arm knob and the hinge knob to lock the angle and height in place

---

Part Four

Attach iPhone

1. Loosen the universal mount hinge screw to adjust angle, then tighten

2. Attach iPhone mount to the universal mount using the universal screw knob

3. Loosen iPhone mount side grips

4. Slide iPhone into place and retighten side grips

   Note: make sure to not over-tighten the side mounts as that can trigger the iPhone emergency call system

---

Part Five

Attach The Power Cables

Connect the AC power cable to the DC power supply. Then:

1. Plug the DC power supply into the DC socket that is below the Tortilla platform

   Note: do not plug the AC power cable into the power outlet yet

2. Position the DC power supply in the opening under the Tortilla base

---

Part Six

Plug The Power Cable In

1. Locate the power outlet you will be using

2. Tape down the AC power cable

   Note: do this before you plug the Tortilla Booth into power

3. Plug the AC power cable in to the power outlet to turn on the Tortilla Booth

4. Test the Tortilla Booth by using the remote to start rotation

---
